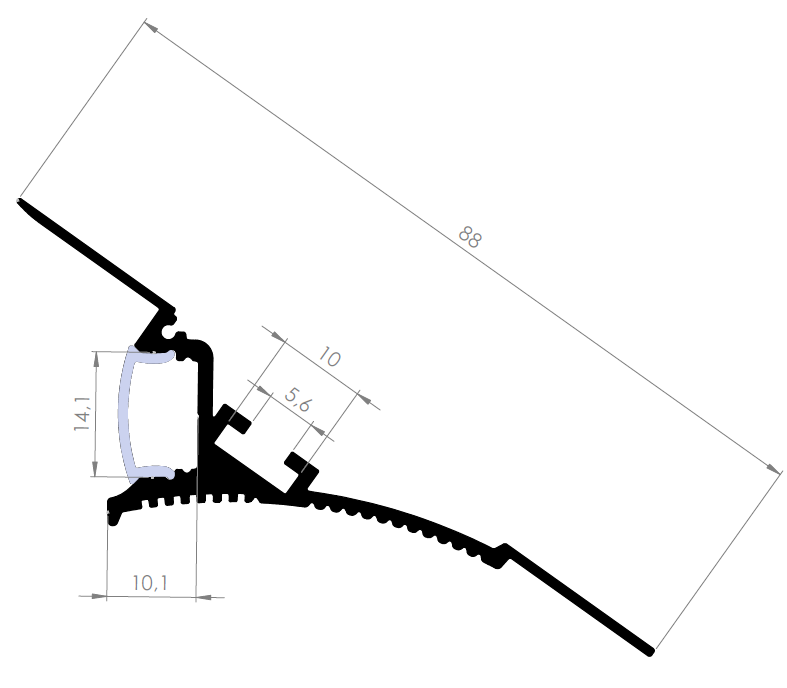

Technical Specifications

Material: Aluminum 6063-T5
Total Outer Width: 88 mm
LED Channel Width: 14.1 mm
LED Channel Depth: 10.1 mm
Product Length: 3050 mm
Side Wing Width: Integrated within 88 mm (trimless structure)
Compatible with Diffuser: Yes

Product Description

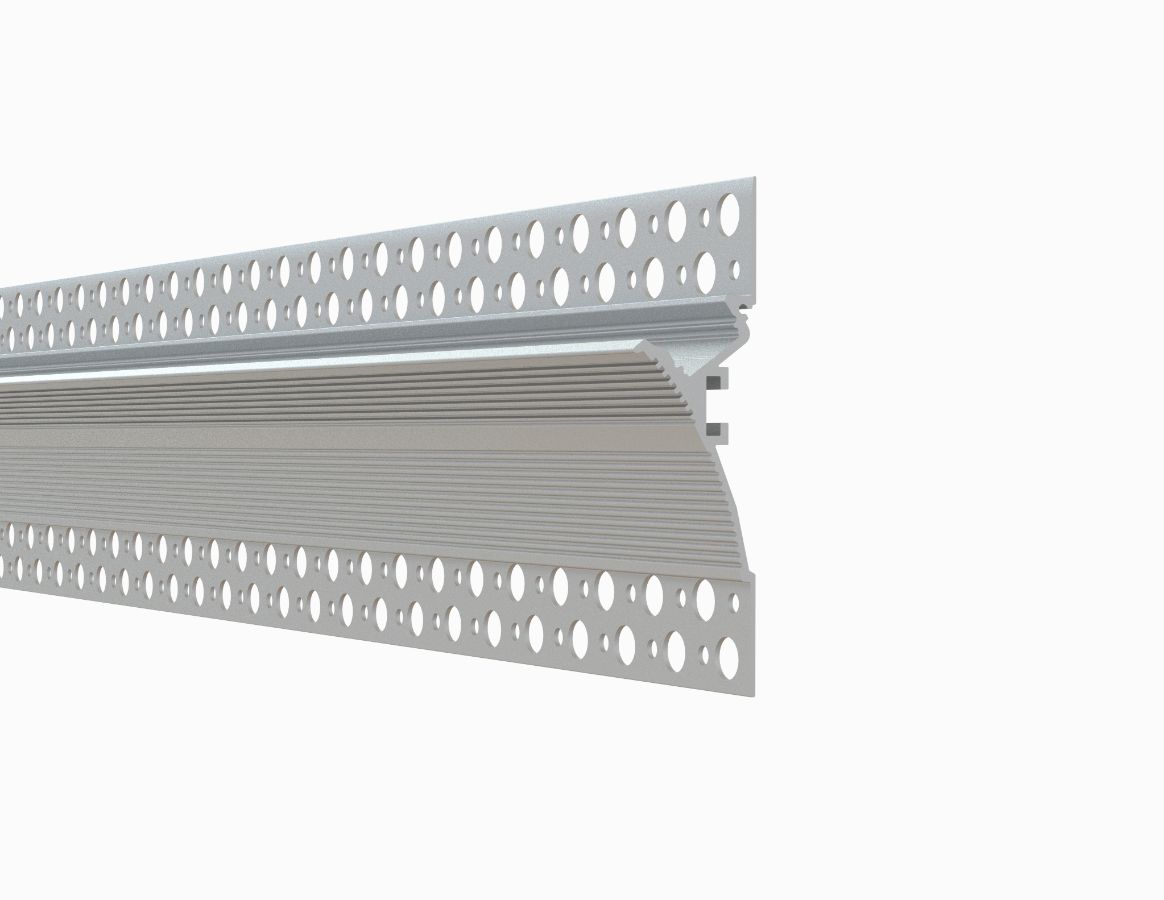

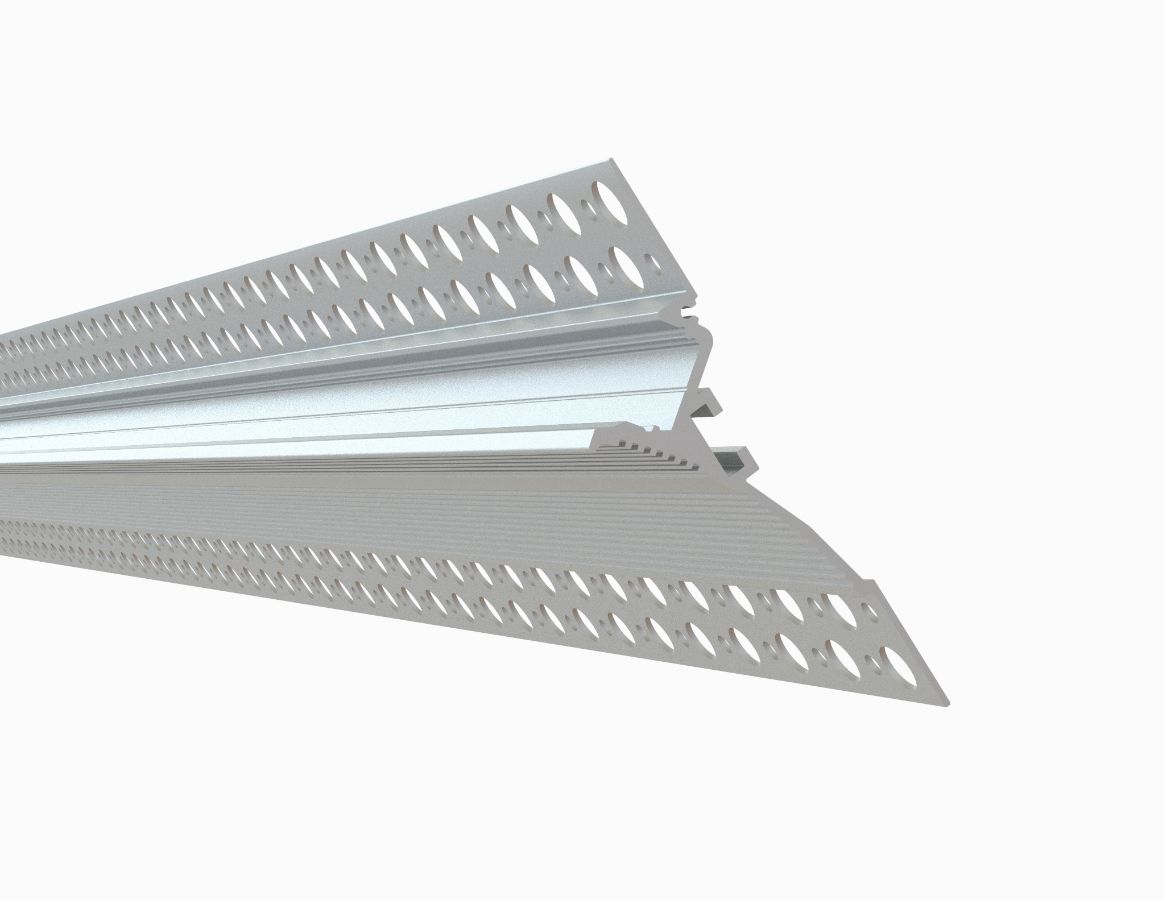

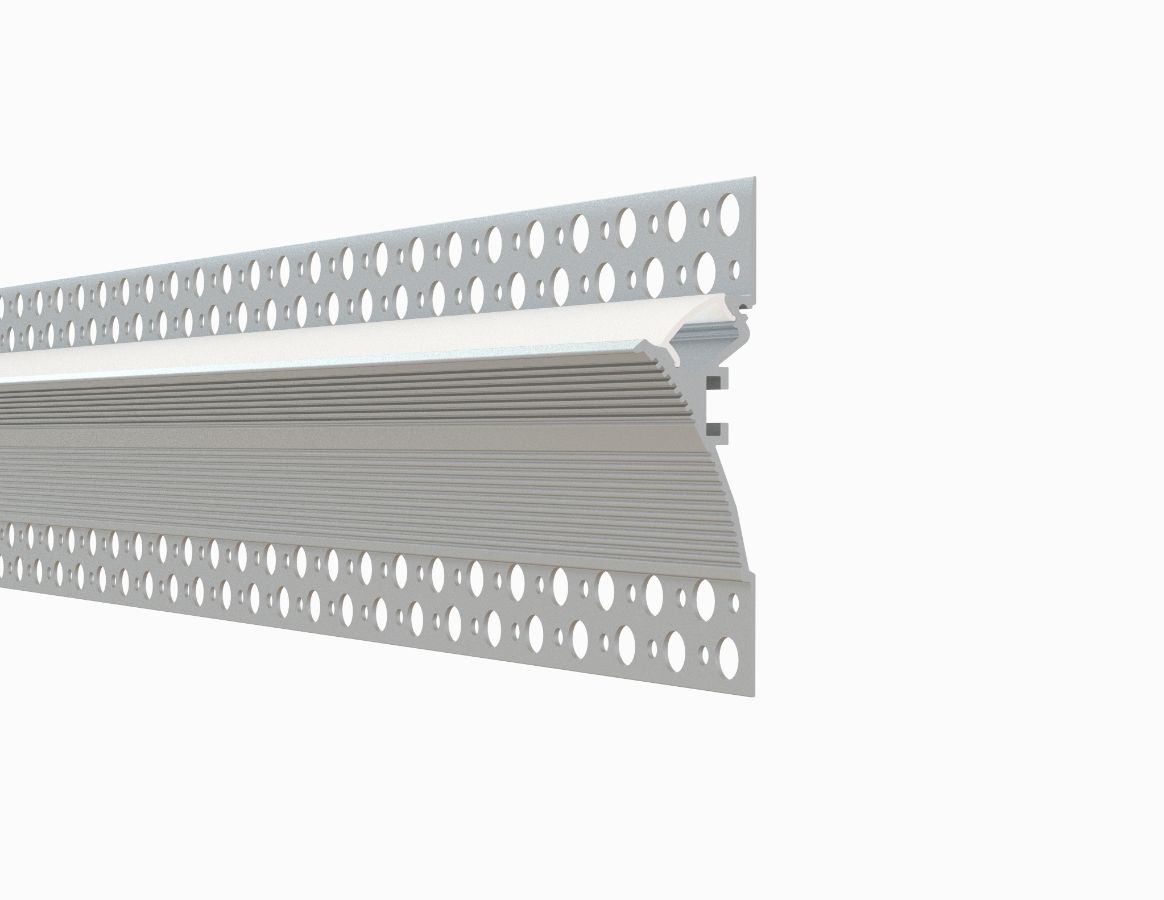

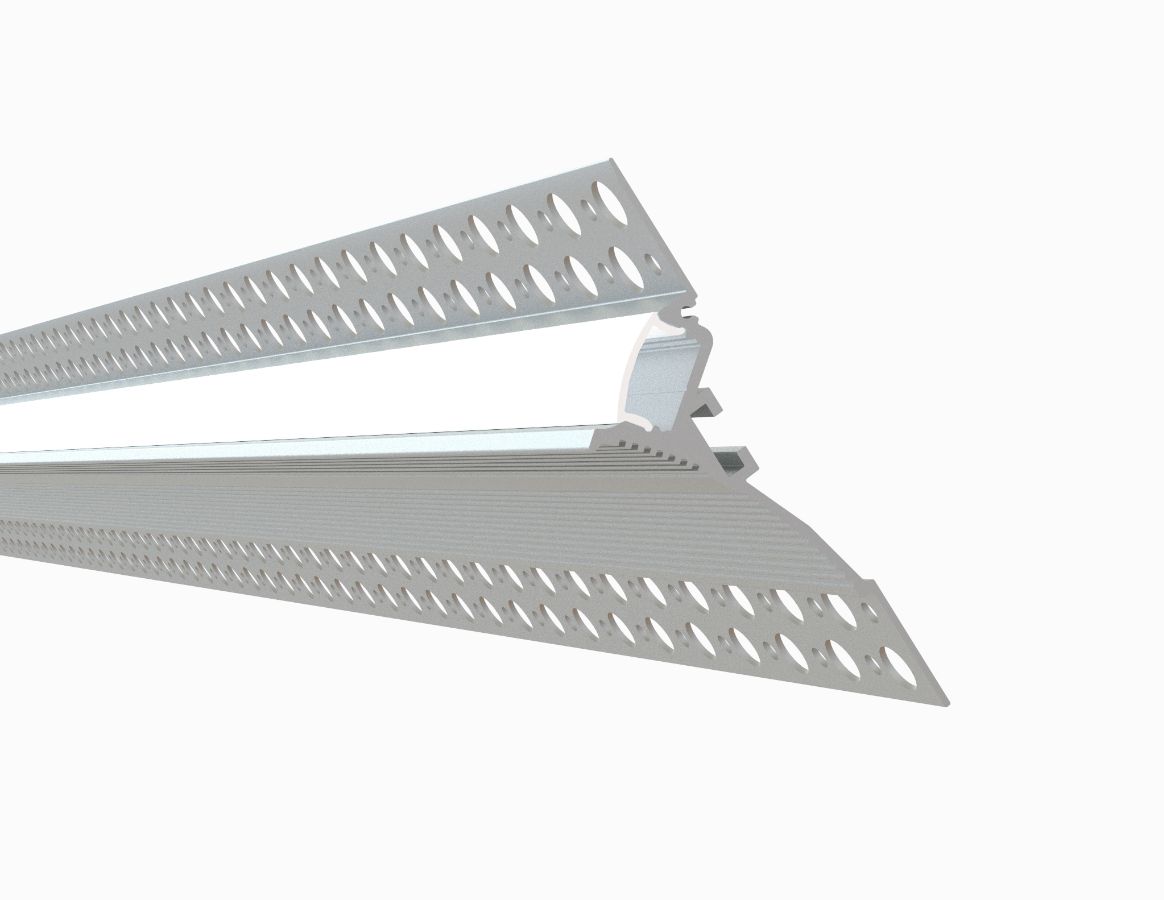

The 680 ASL Trimless Corner LED Profile is a special recessed LED profile used to create a clean light line in the corners of modern interiors. It is made from 6063-T5 aluminum, which helps the LED strip stay cool and last longer.

The trimless design lets the profile blend completely into the drywall, so there is no visible frame. This creates a smooth, modern, and seamless look on the wall or ceiling. Its corner design makes it useful for both decorative and functional lighting.

The diffuser slot helps spread the light softly and evenly, giving the room a comfortable and elegant lighting effect.

Advantages

Trimless Design: Fully recessed, frame-free appearance.
High Durability: Long service life with a 6063-T5 aluminum body.
Heat Management: Optimal heat dissipation for LED performance.
Flexible Use: Compatible with both diffuser and non-diffuser applications.
Easy Installation: Designed for quick and efficient installation with drywall systems.
Professional Appearance: Provides a continuous and minimalist light line.

Application Areas

• Residential interiors
• Decorative corner lighting applications
• Offices and commercial spaces
• Hotels, lobbies, and corridors
• Cafés and restaurants
• Architectural niche, wall, and ceiling integrations
• Modern lighting design concepts
