564 AS Set High-Performance Heatsink
Manufactured in your preferred width and length. Assembled aluminum heatsink, 145 mm high.
Request a quote for this product ↗Share your required cutting length, quantity and surface finish.
LIGHT IN SPACE
Product images
Technical details
Production in your preferred width and length

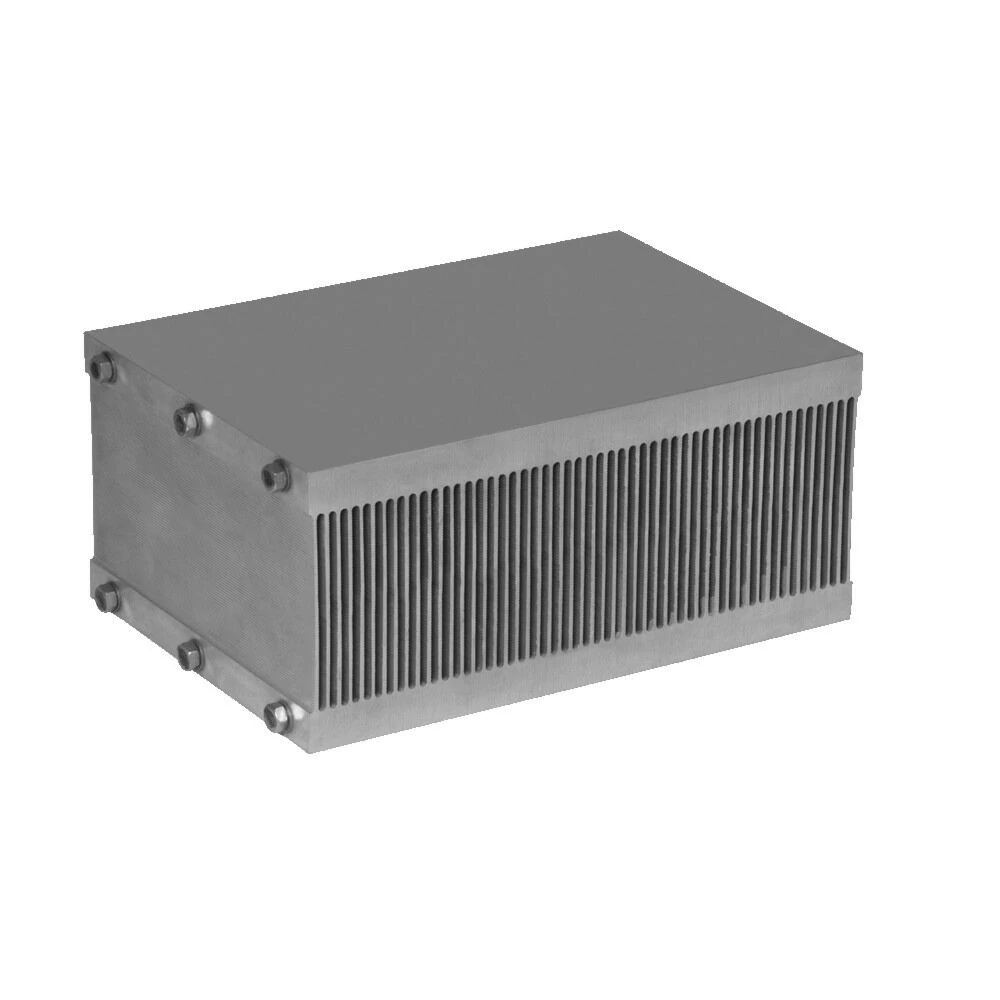

The set is assembled from 564 AS profiles joined at the top and bottom to form enclosed longitudinal air channels. Width and length are determined according to your project requirements.
Dimensions
| Width | Custom sizing available |
|---|---|
| Length | Custom sizing available |
| Height | 145 mm |
| Material | 6063-T5 |
| Product structure | Assembled aluminum heatsink |
Technical cross-section and assembly view
The technical cross-section shows one 564 AS profile: 145 mm high with a 6 mm end-head width. The 6 mm dimension is not the total set width. The assembly view is illustrative; connection and machining details are project-specific.
Get a quote for custom dimensions
Share your required width, length, quantity and assembly requirements. Cutting, drilling, tapping, milling and surface treatments are evaluated according to your project.
Get a quote for custom dimensions ↗
Technical cross-section and dimensions
