1064 AS Aluminum Heatsink Profile
300 mm Width Aluminum Heatsink 1064 AS
Request a quote for this product ↗Share your required cutting length, quantity and surface finish.
LIGHT IN SPACE

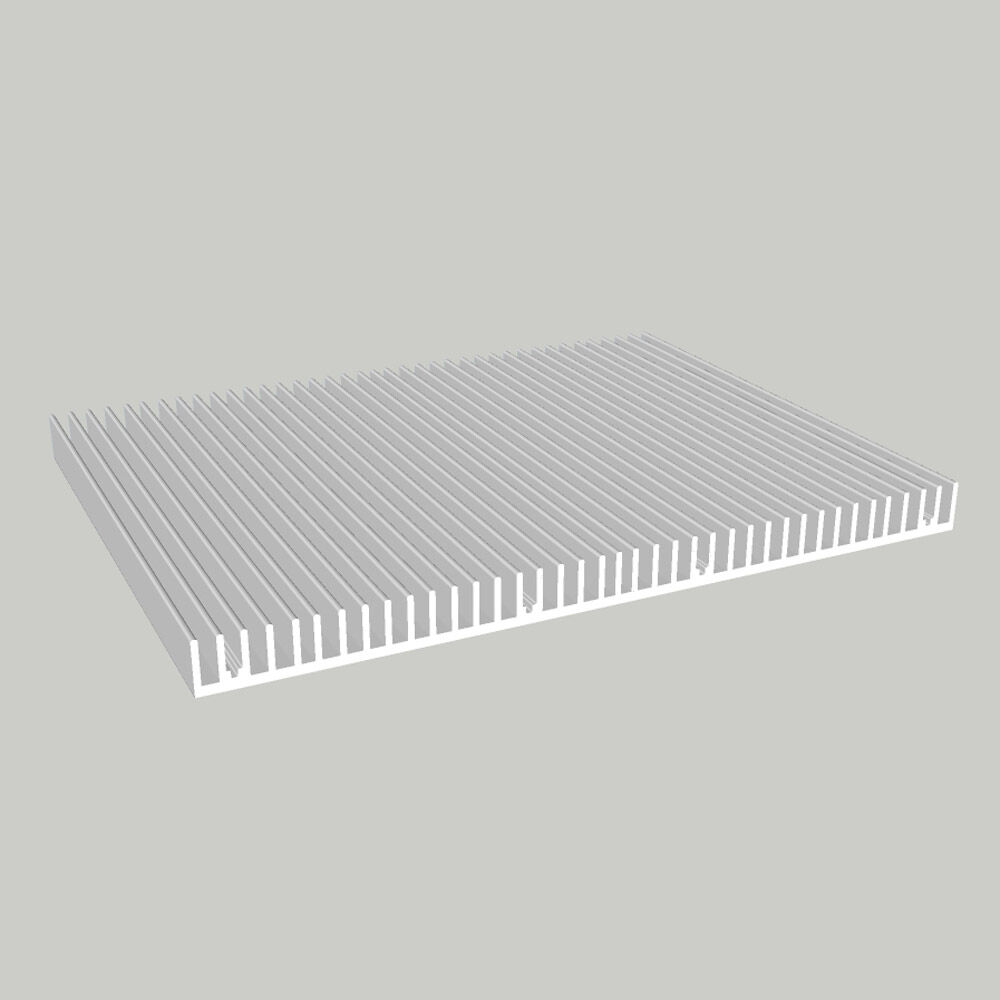

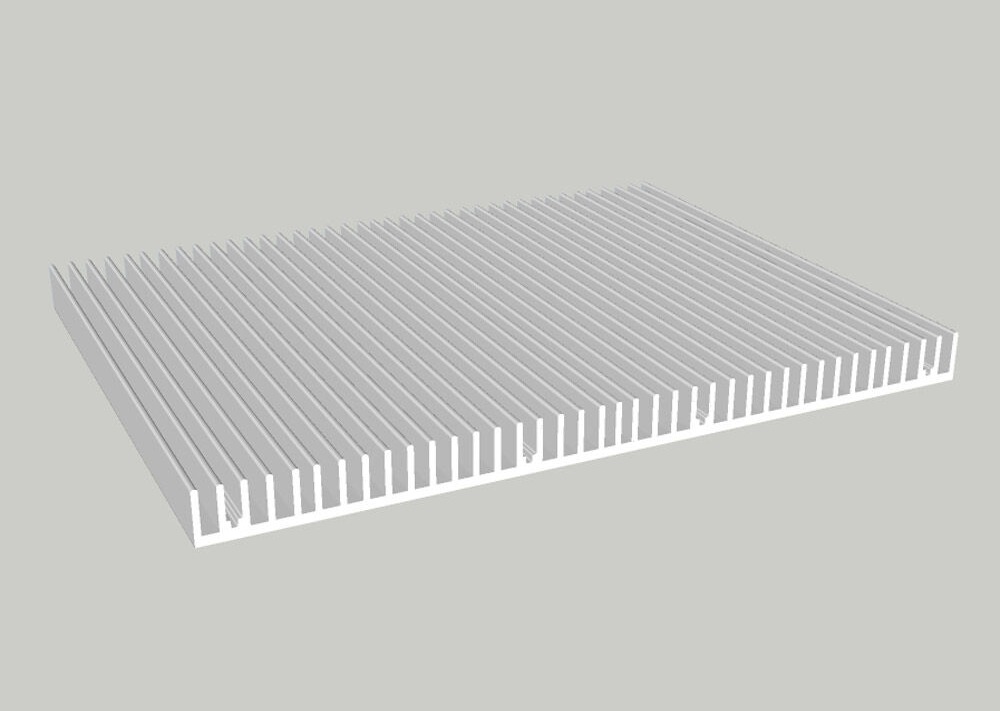

Product images
Technical details
1064 AS is an aluminum heatsink profile with a width of 300 mm and a height of 20 mm. This cross-section, used for thermal management in electronic applications, can be evaluated based on the mounting space and processing requirements of your project.
Cross-section specifications
| Product Code | 1064 AS |
|---|---|
| Material | Aluminum 6063-T5 |
| Surface | Raw (untreated) |
| Width | 300 mm |
| Total Height | 20 mm |
| Base Thickness | 3 mm |
| Number of Fins | 39 |
Let us process it according to your project
Share your cutting length, quantity, and assembly requirements. We will evaluate drilling, tapping, milling, anodizing, and painting options based on your project.
Technical documentation

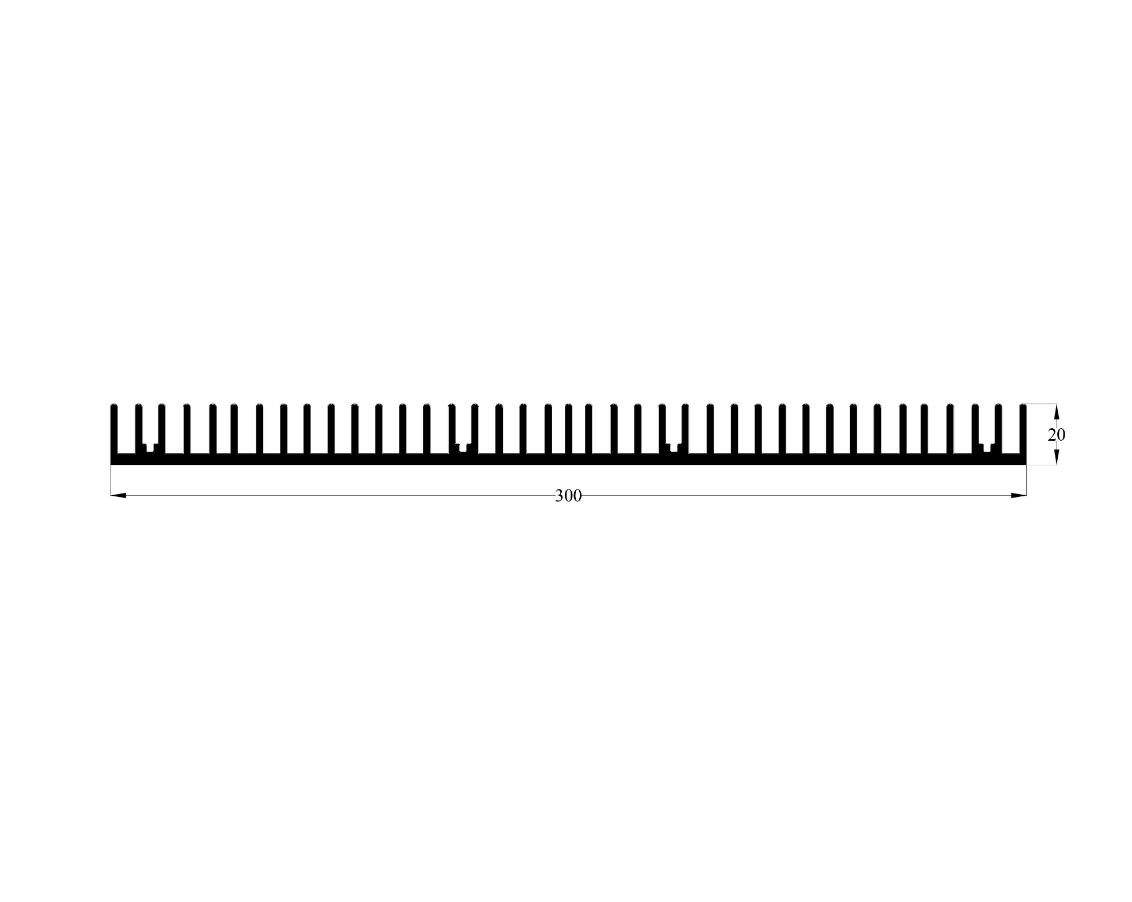

Technical cross-section and dimensions
