864 AS Set High-Performance Heatsink
775 AS aluminum heatsink with internal fins, assembled for forced-air cooling. 244.8 × 119.2 mm cross-section; available in custom lengths with CNC machining.
Request a quote for this product ↗Share your required cutting length, quantity and surface finish.
LIGHT IN SPACE
Product images
Technical details
HIGH-PERFORMANCE HEATSINKS
Controlled airflow for power electronics
864 AS Set is an assembled heatsink solution designed for forced-air cooling applications, featuring an enclosed aluminum housing and 775 AS internal fins. The longitudinal air channels allow the airflow generated by the fan to pass through the entire length of the product.
244.8 × 119.2 mm assembled profile. Manufactured to your required length with processing options tailored to your application.
864 AS Set — Assembled Aluminum Heatsink
The structure, formed by combining the top and bottom 864 AS body profiles with the 775 AS internal grilles, provides numerous air channels within a compact housing. The open passages between the grilles create an arrangement suitable for forced airflow.
Fan-cooled applications
Suitable for cooling designs in power supplies and power electronics systems that utilize fan-forced airflow. The enclosed housing helps direct heated air through longitudinal channels toward the exhaust.
Technical specifications
| Width | 244,8 mm |
|---|---|
| Mounting height | 119,2 mm |
| Length | Custom length production |
| Material | 6063-T5 aluminum |
| Housing profiles | 864 AS |
| Internal grilles | 775 AS |
| Machining options | Cut-to-length, drilling, and CNC milling |
Custom manufacturing tailored to your project's dimensions and assembly requirements
The length of the heatsink is determined by the layout of your device. Mounting holes, milling, and contact surfaces can be machined according to your technical drawing, ensuring the product is prepared to meet the specific installation requirements of your application.

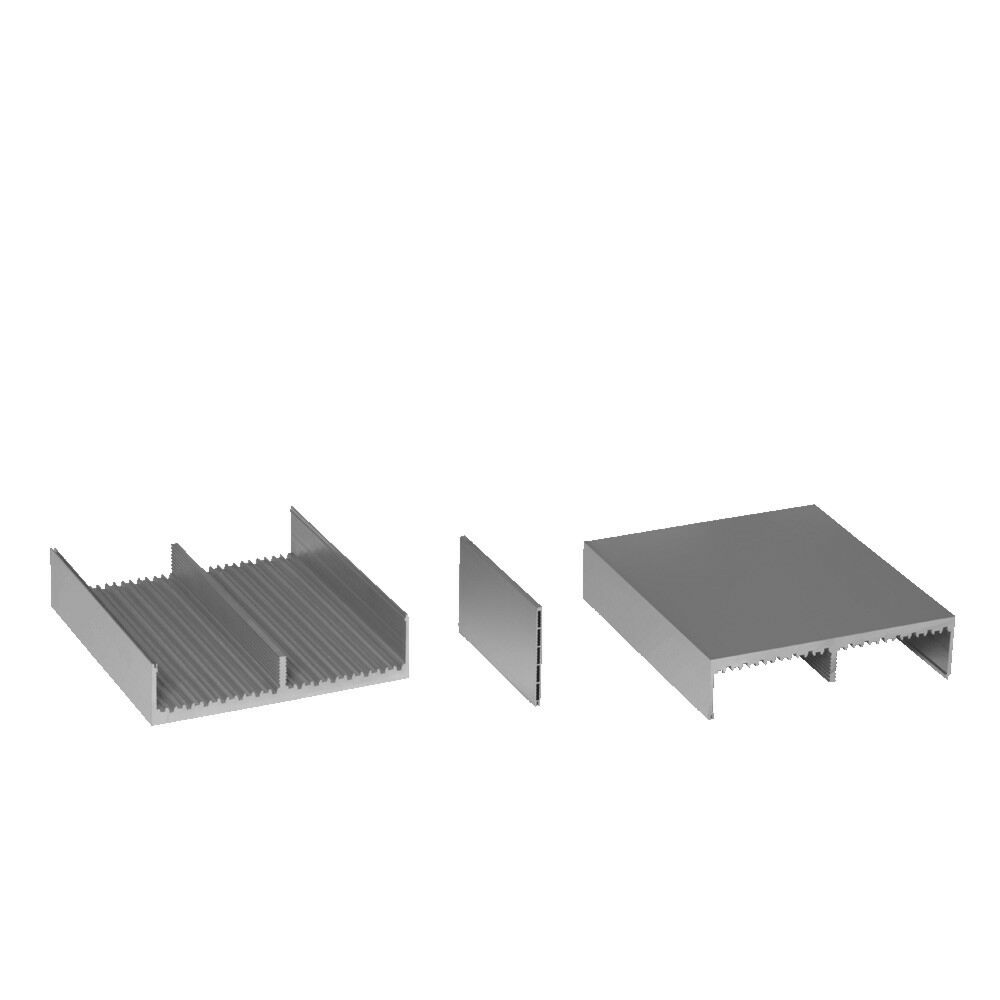

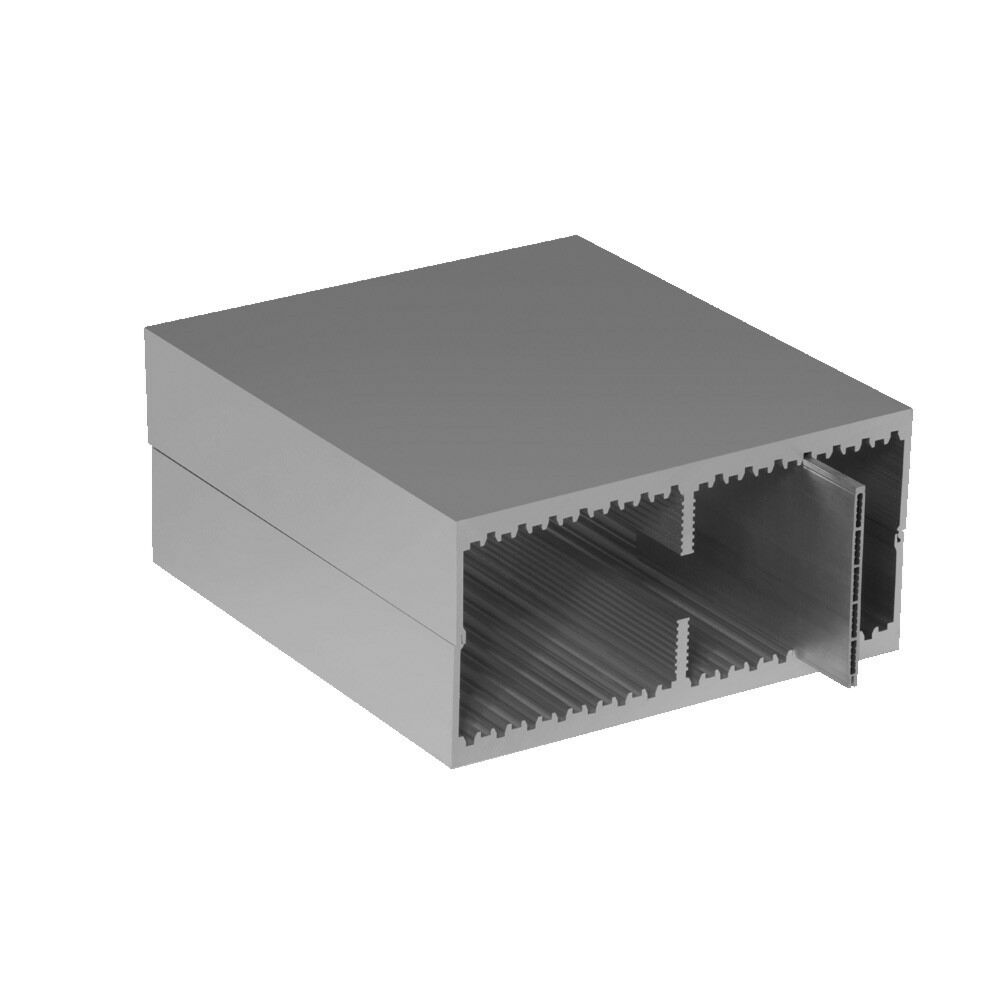

Assembled product view

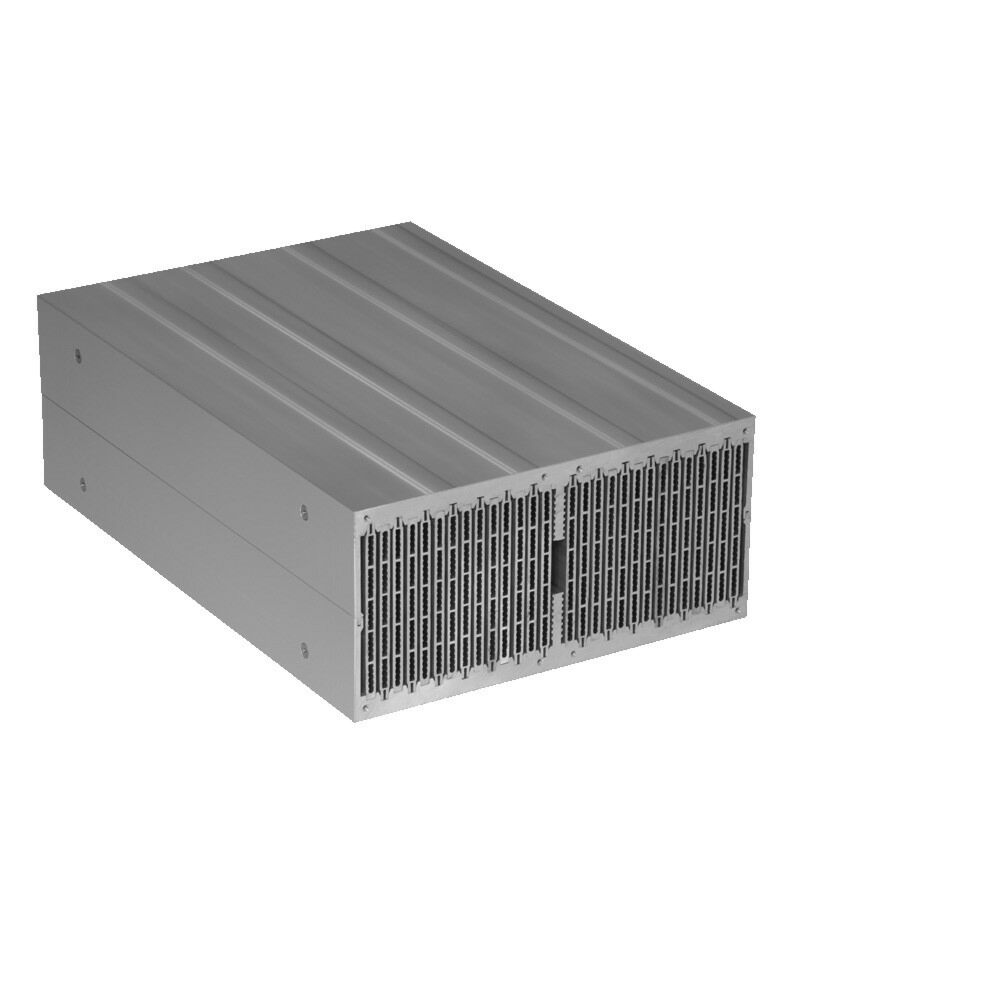

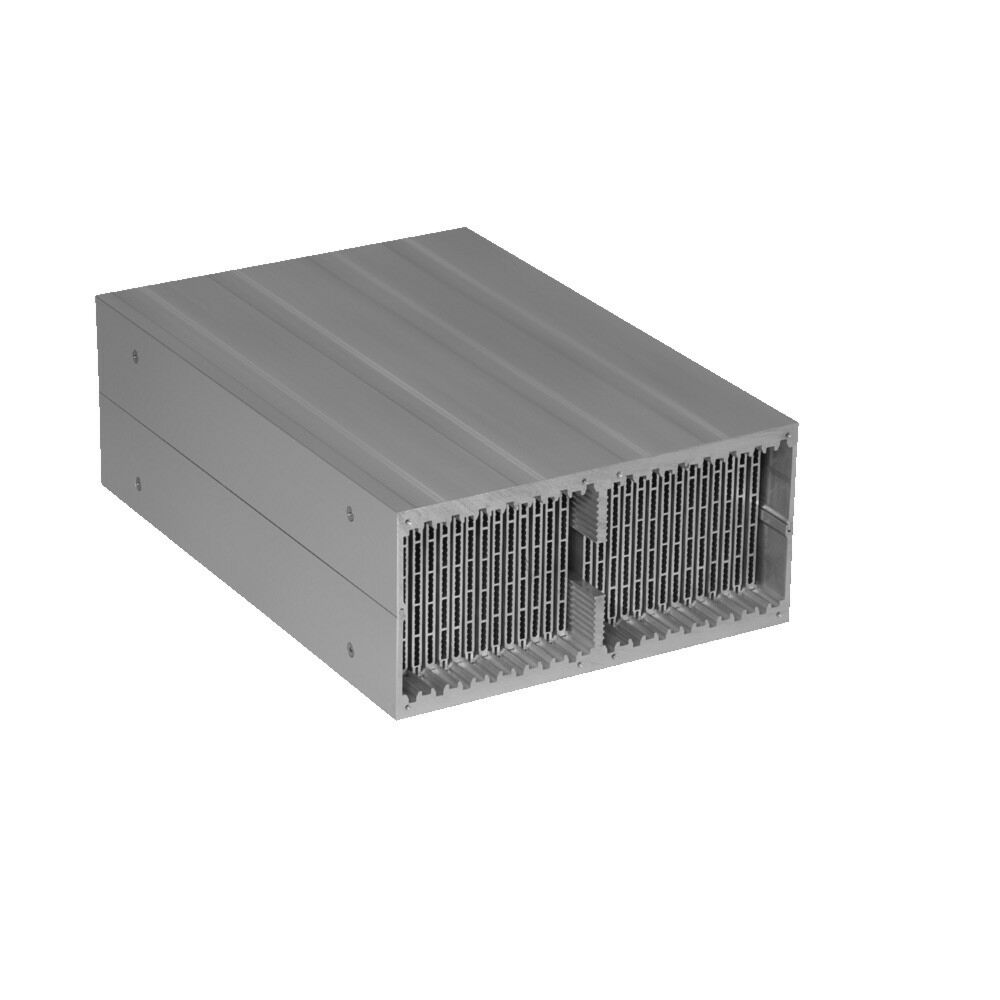

Assembled heatsink consisting of 864 AS housing and 775 AS internal grids.
Share your measurements and we will prepare a quote
Please provide the required length, quantity, and processing details. You can share your assembly drawing to receive a quote for production tailored to your project.
Get a quote for your project ↗
Technical documentation
View the assembled view and the 244.8 × 119.2 mm cross-section in the PDF. The length shown in the render is 250 mm; the production length is determined by your order.

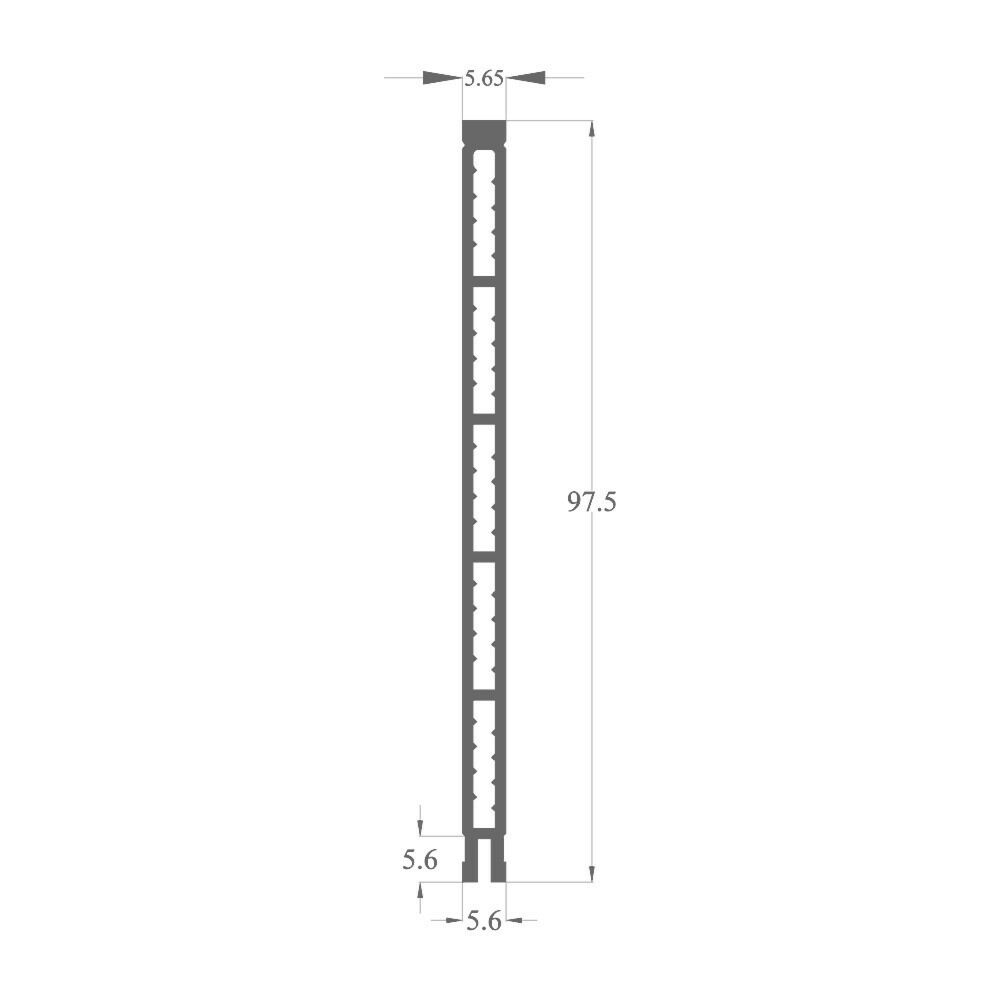

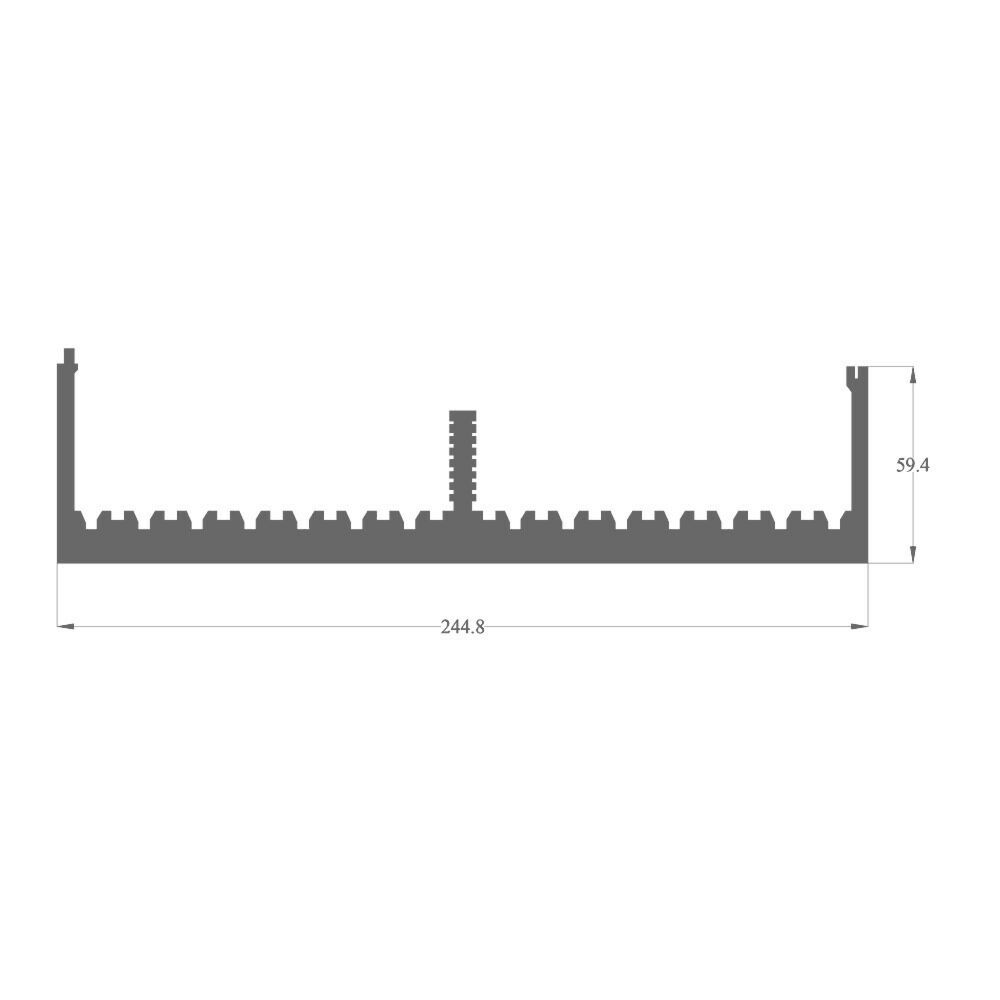

Technical cross-section and dimensions
