192-193 AS Set High-Performance Heatsink
150 × 83.3 mm assembled heatsink. Optional 1 mm aluminium side closure plates.
Request a quote for this product ↗Share your required cutting length, quantity and surface finish.
LIGHT IN SPACE

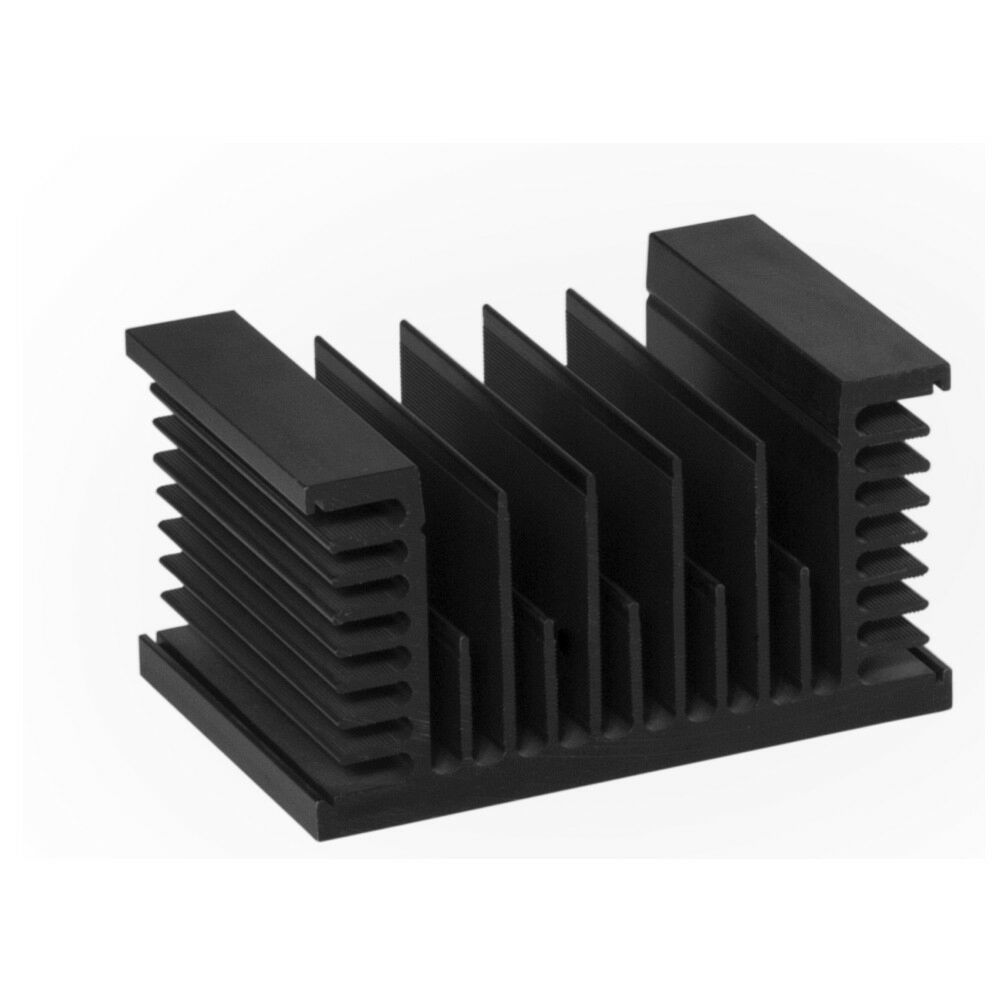

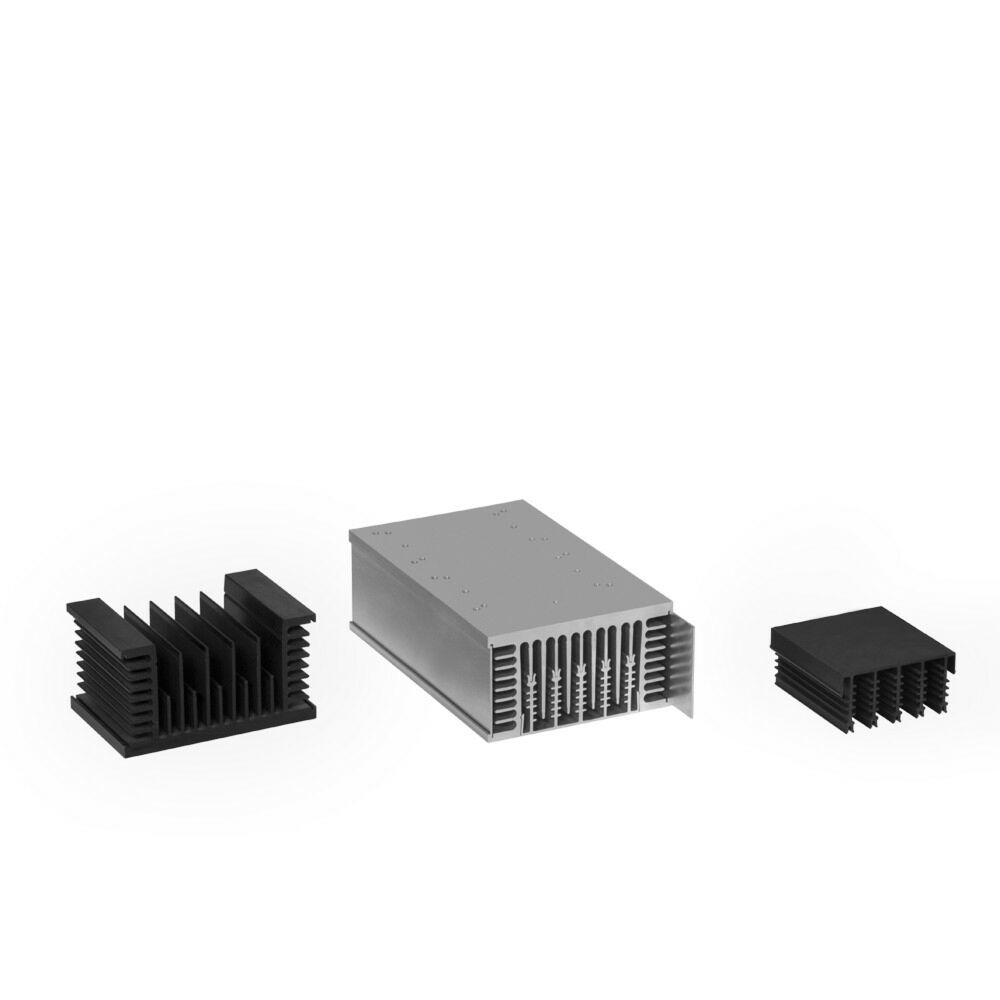

Product images
Technical details

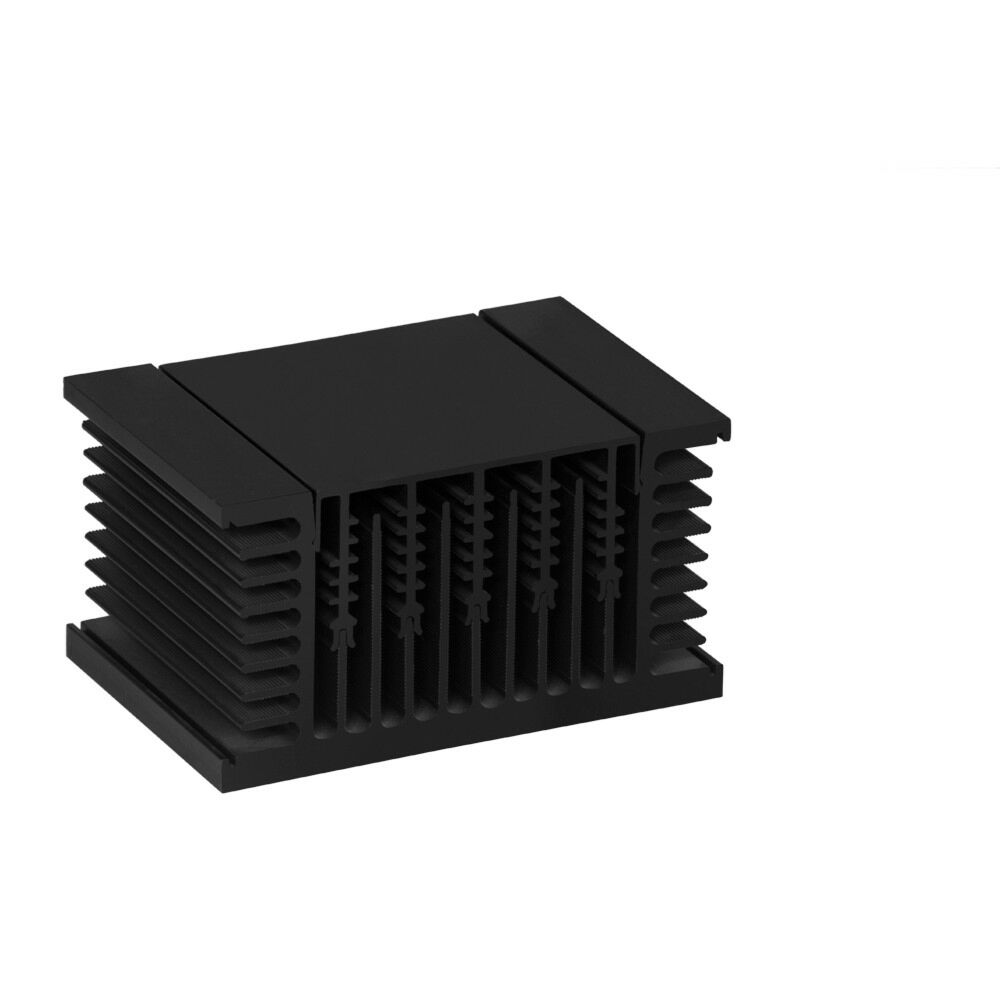

The 192-193 AS Set combines the 192 AS inner fin profile with the 193 AS outer body. Its longitudinal air channels can be considered for power electronics applications requiring forced convection.
| Product code | 192-193 AS Set |
|---|---|
| Material | Aluminium 6063-T5 |
| Width | 150 mm |
| Height | 83.3 mm |
| Cut length | Project-specific |
| Side plates | Optional, 1 mm |

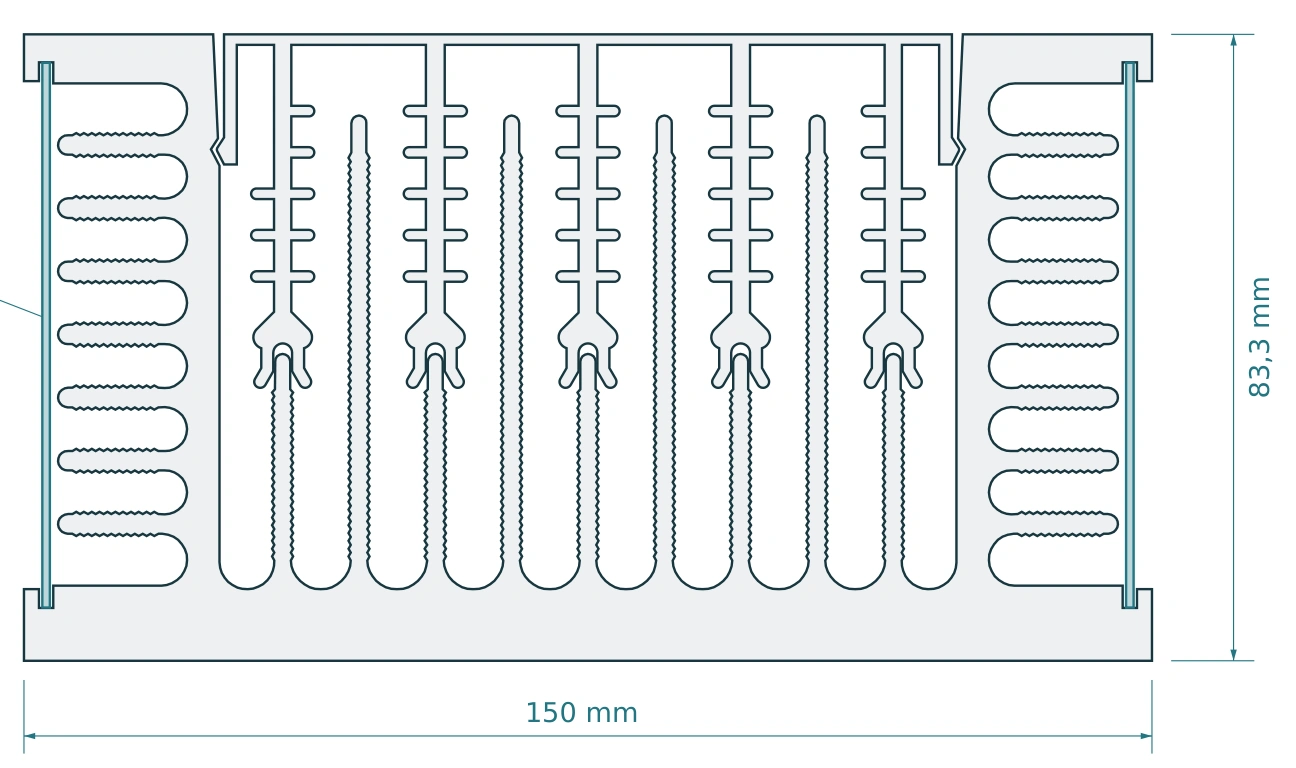

Optional 1 mm side closure plates
Available on request with 1 mm aluminium plates fitted into both outer side channels. The plates enclose the outer side fins while the front and rear airflow openings remain open. Plate size and fit tolerances are confirmed before production.
Share your cut length, quantity, mounting holes, milling and surface finish requirements. Thermal suitability is assessed for the airflow, heat source and operating conditions of your application.
Download technical cross-section PDF ↗

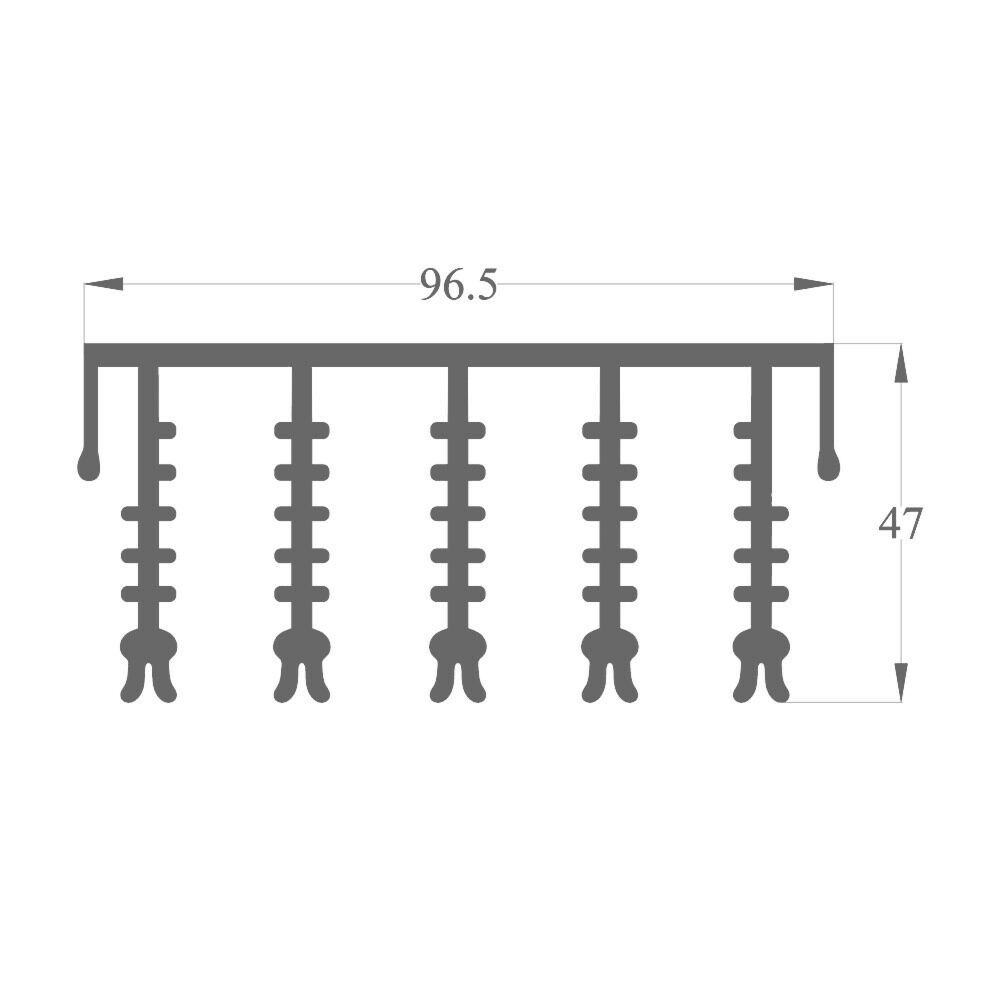

Profiles used in this assembly
View technical information for the profiles used in this assembly.

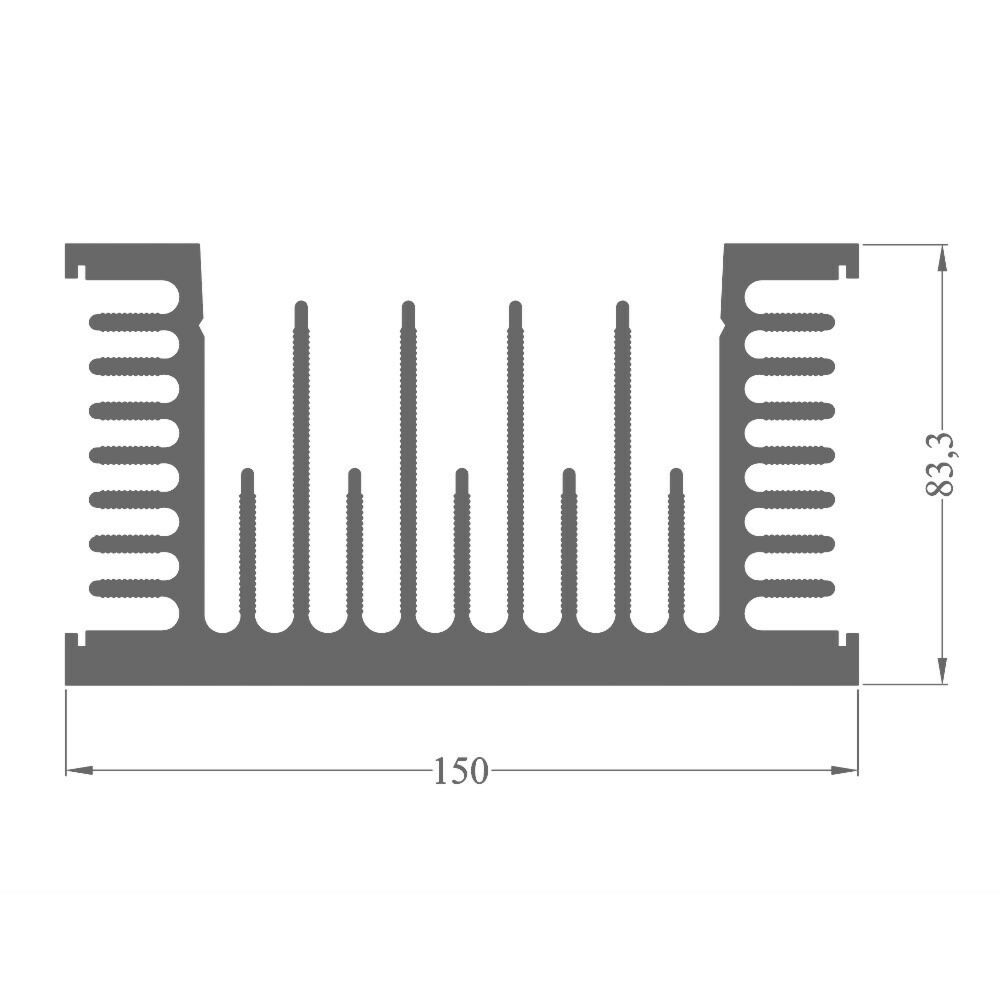

Technical cross-section and dimensions
