1426 AS Set High-Performance Heatsink

Press-fit aluminum heatsink — 6 mm fin pitch, custom width and length production.

Request a quote for this product ↗

Share your required cutting length, quantity and surface finish.

LIGHT IN SPACE

Product images

Technical details

CUSTOM PRODUCTION FOR YOUR PROJECT

Production in your preferred width and length

1426 AS Sets are manufactured with width and length dimensions tailored to your project requirements. Please share your specifications and quantity, and we will prepare a quote for your assembled heatsink.

1426 AS Set — Assembled Aluminum Heatsink

The assembled heatsink solution made with the 1426 AS profile is offered in the High-Performance Heatsinks group. The width of the assembled product differs from the cross-sectional width of one profile; the required width and length are specified for each project.

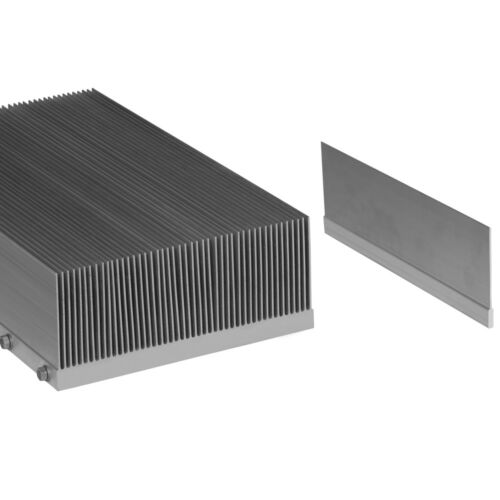

Studless, press-fit modular structure

1426 AS profiles are joined by press-fitting their interlocking surfaces. No studs are used during assembly. Thanks to the modular structure, the number of profiles is determined according to your needs; the width is adjusted to the module pitch, and the length is prepared to your requested size.

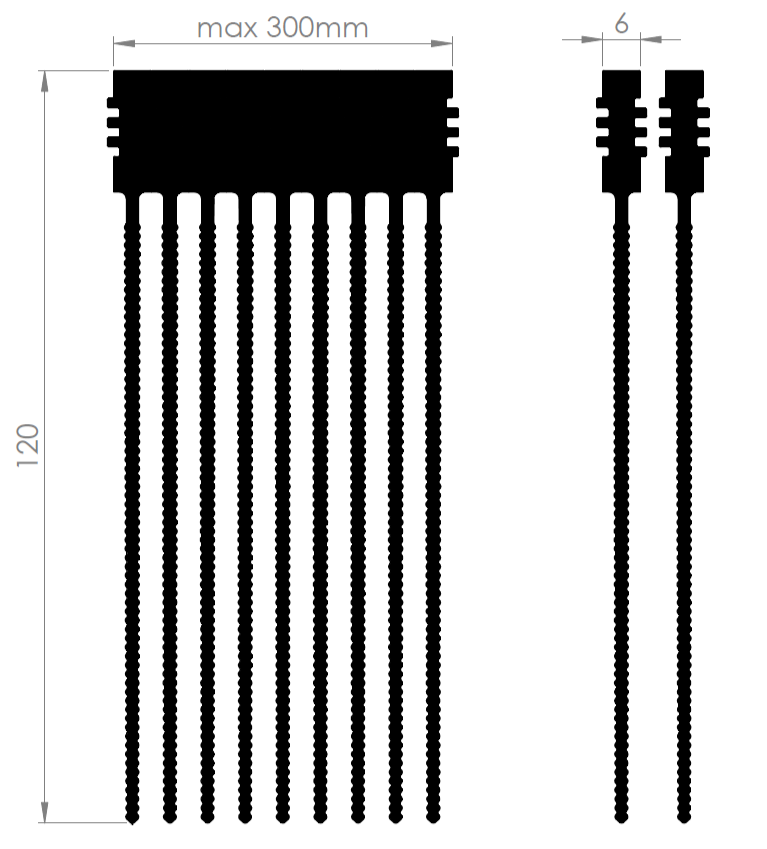

Wing pitch: 6 mm (center to center). This value represents the distance between the centers of two adjacent fins.

Dimensions

Fin pitch	6 mm — center-to-center
Height	120 mm
Assembly method	Press-fit; studless assembly
Width	Custom sizing available
Length	Custom sizing available
Product structure	Assembled aluminum heatsink

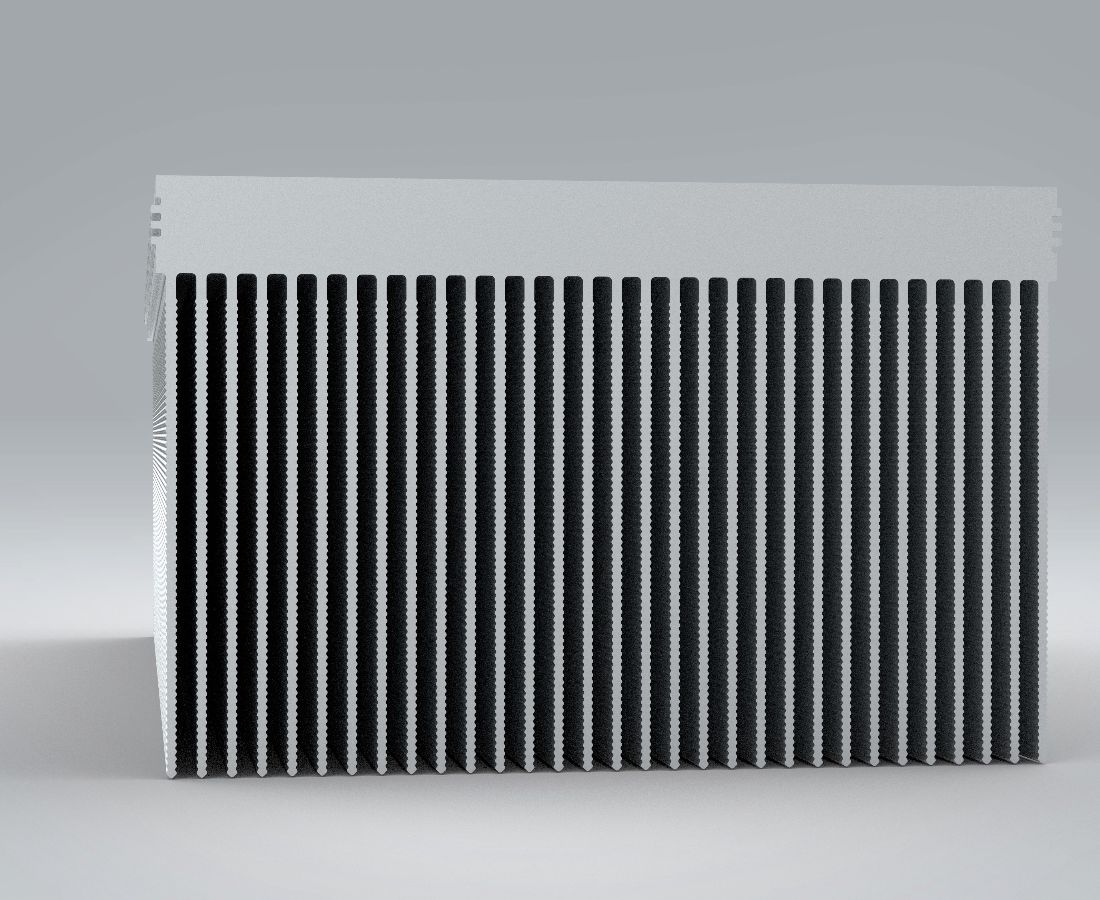

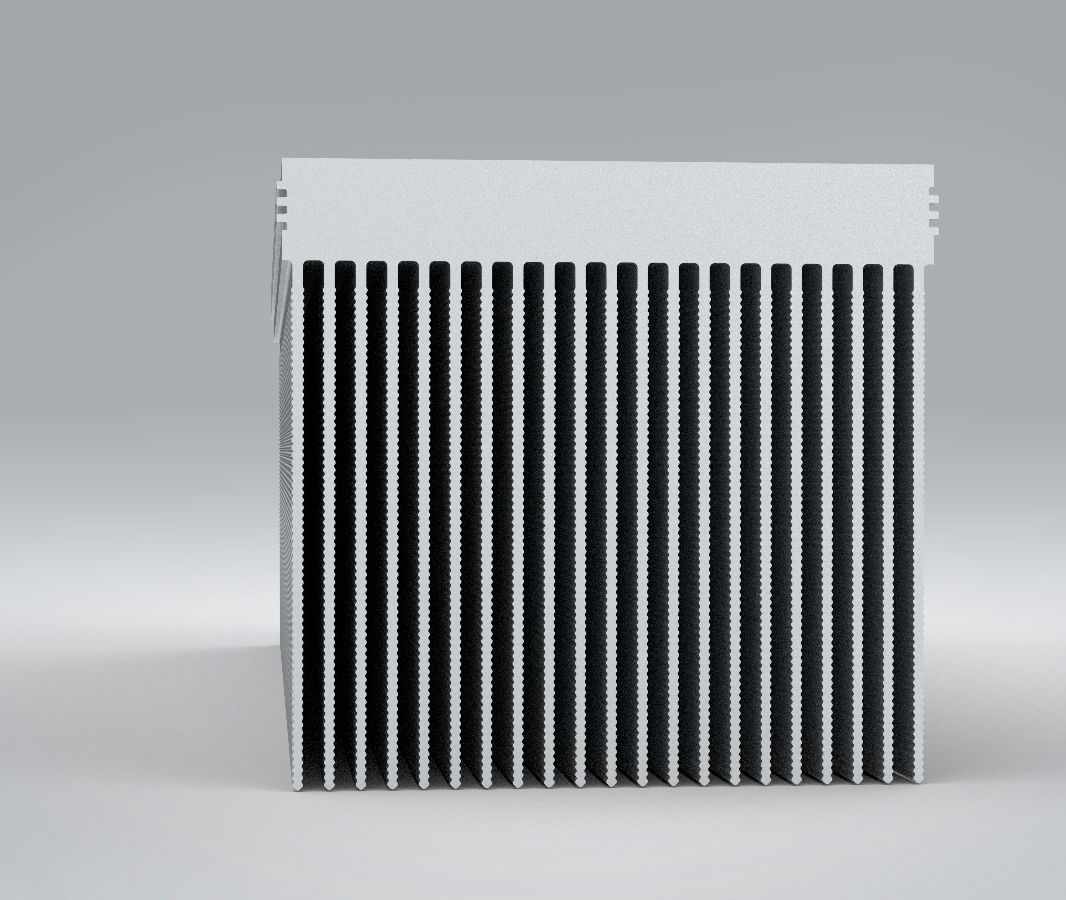

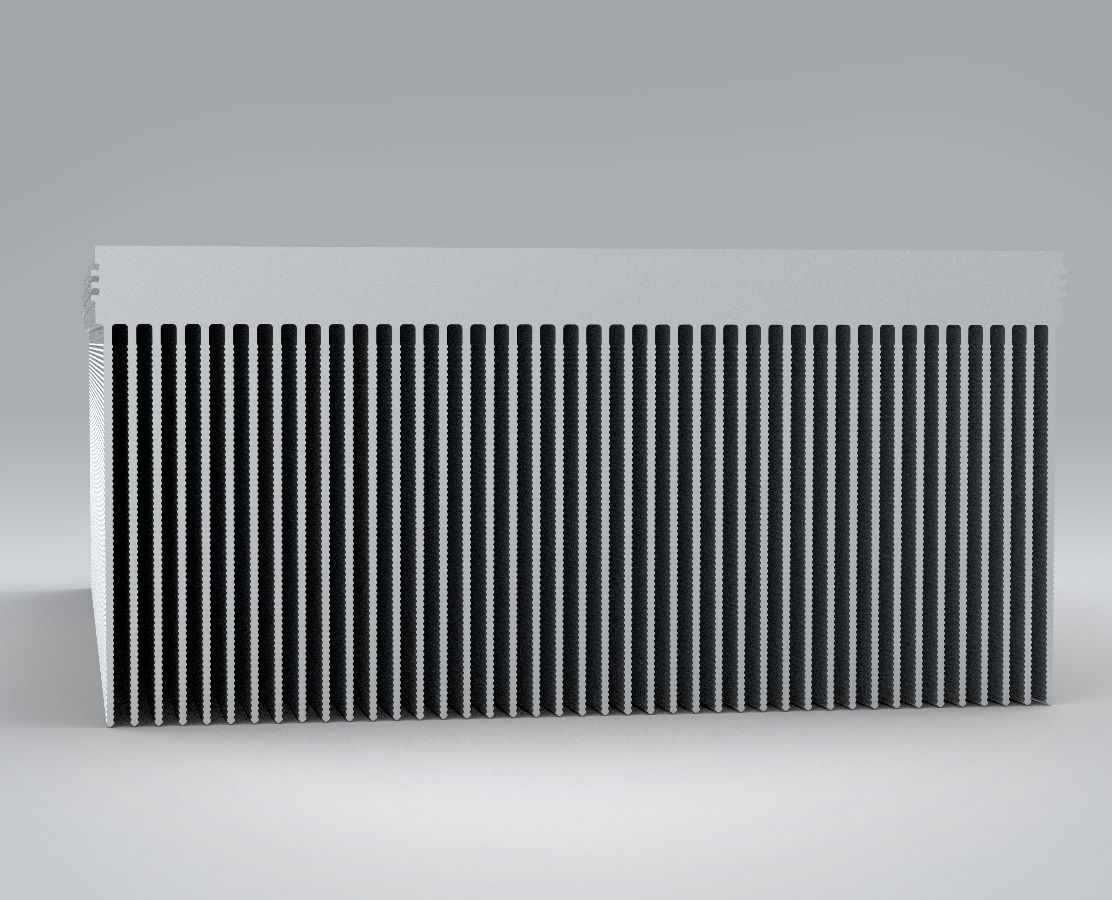

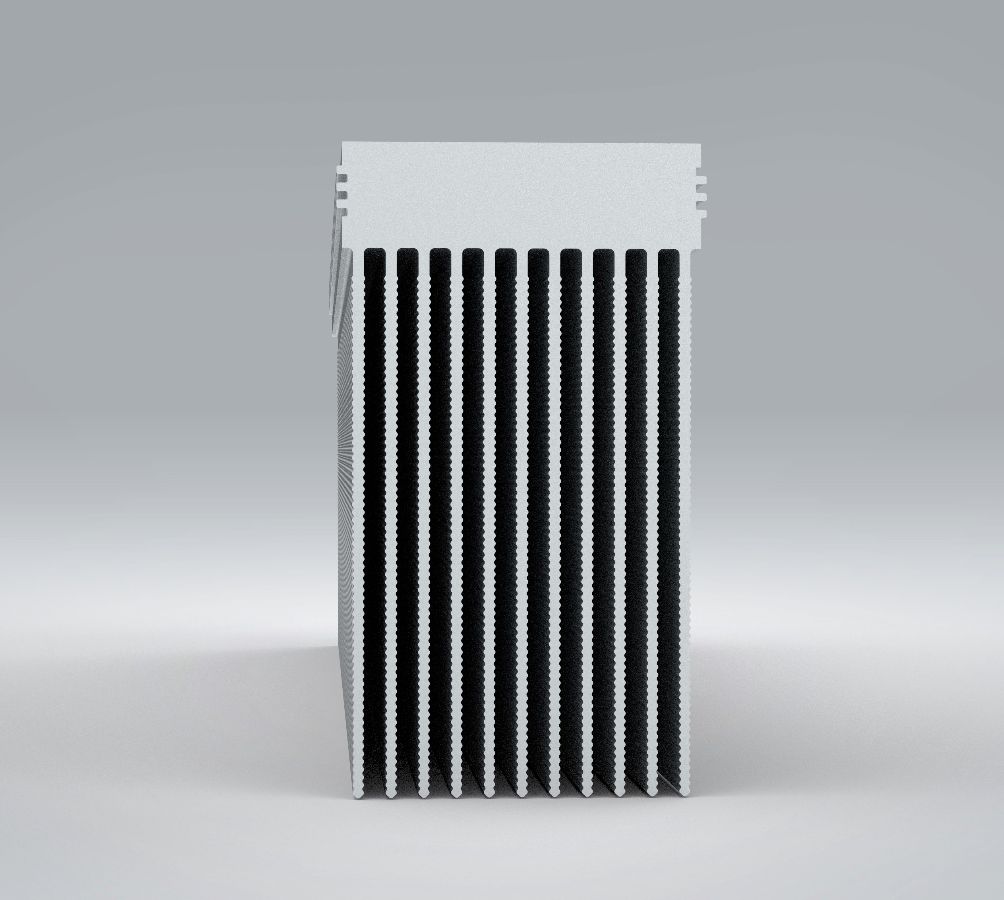

Example configuration shown

Nominal 240 mm width × 300 mm length × 120 mm height; 40 modules and 6 mm wing pitch. The total width including external connection threads is 242 mm. These dimensions refer to the example shown. We can manufacture to your requested width and length.

Share your measurements and we will prepare a quote

Please provide your desired width, length, quantity, and installation requirements. If you have a technical drawing, you can attach it to your quote request.

Get a quote for custom dimensions ↗

Technical documentation for the sample assembly

You can view the assembly drawing and front cross-section of the 240 × 300 × 120 mm sample configuration in PDF format. Width and length are determined according to your project requirements.

Download sample assembly PDF ↗
